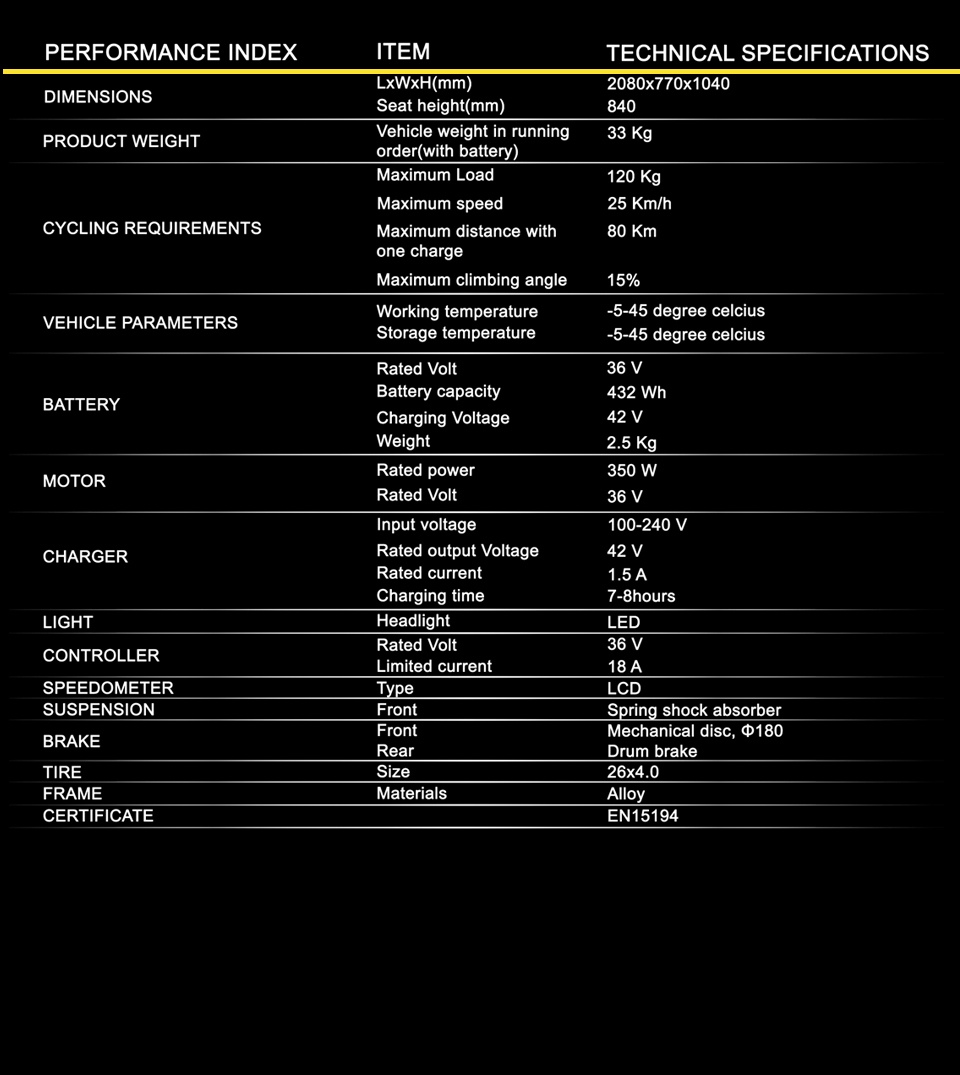

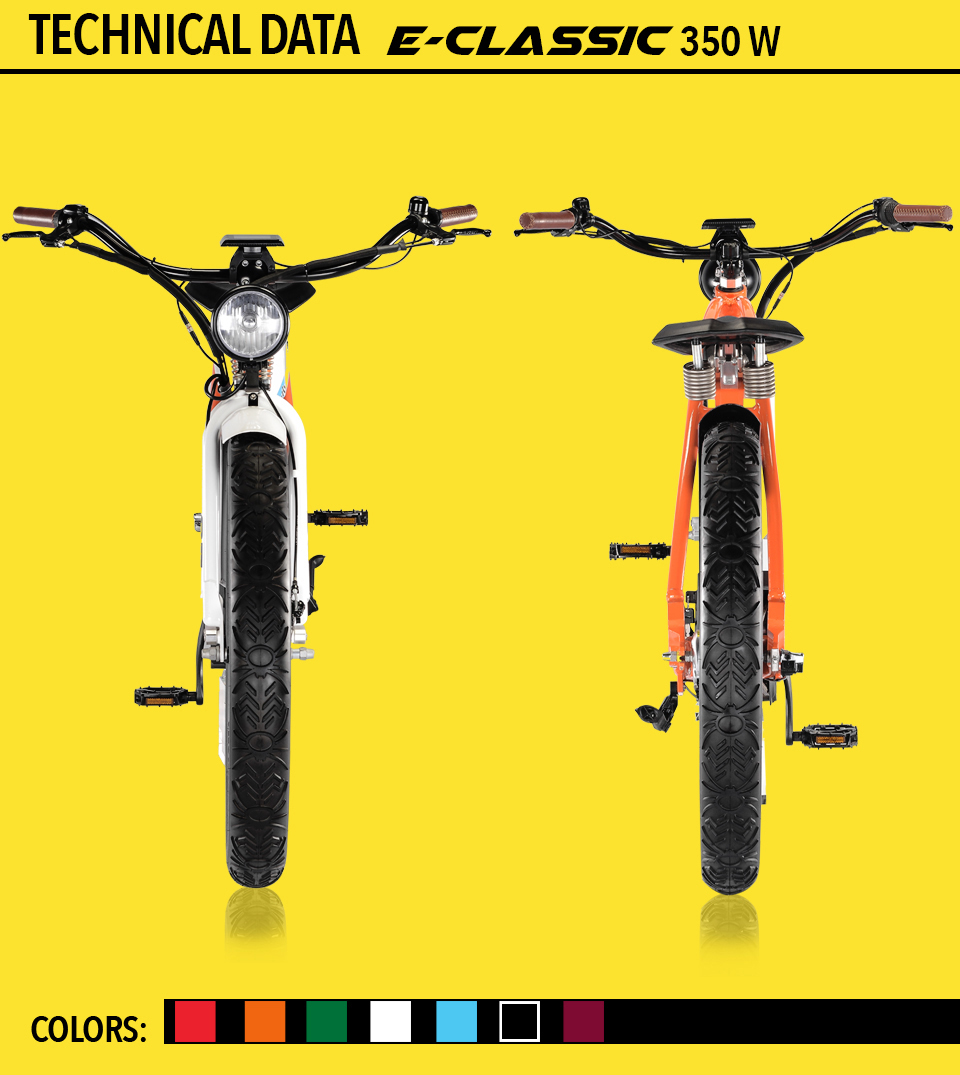

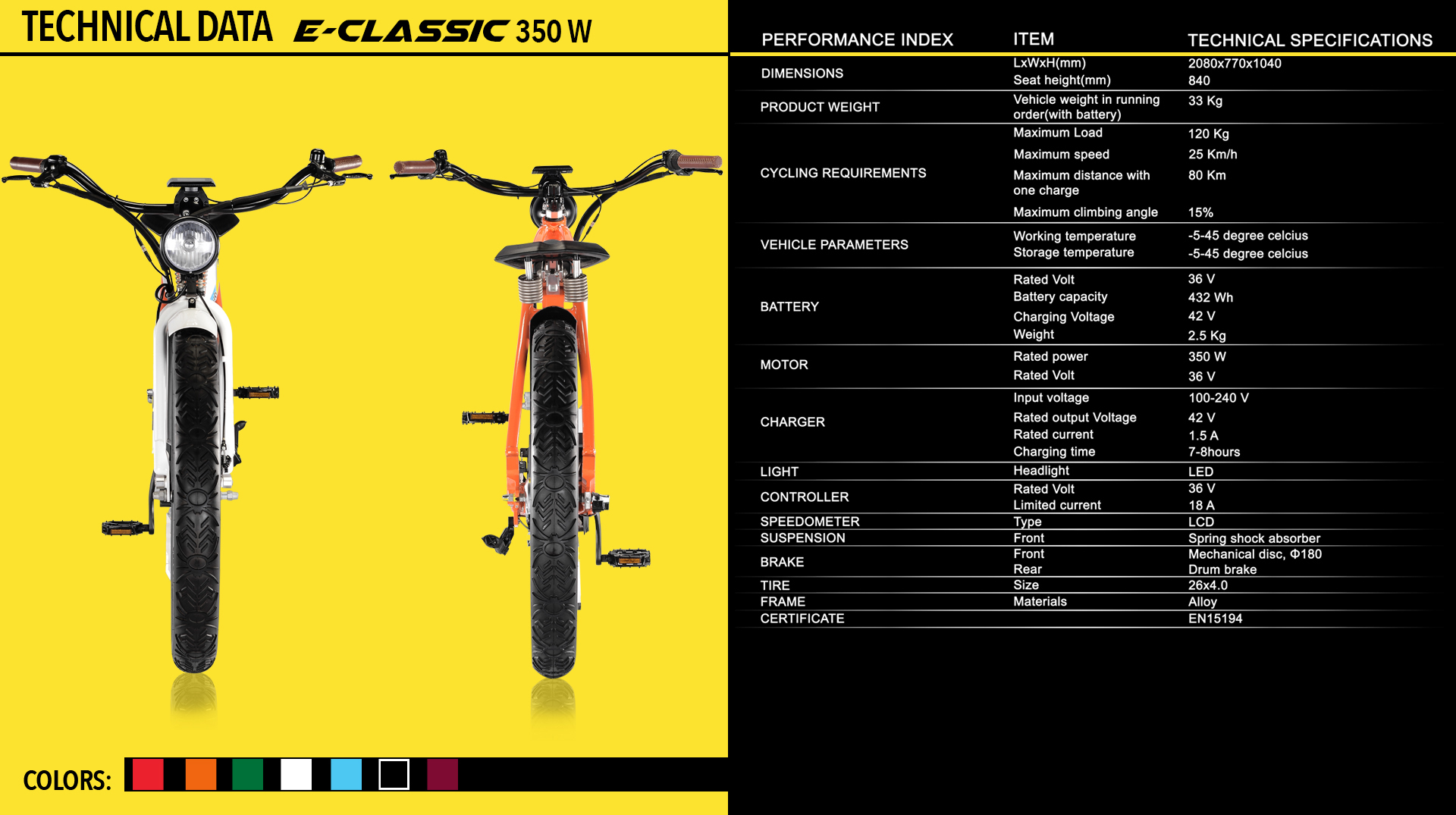

| TECHNICAL DATA | ||
|---|---|---|
| DIMENSIONS | L x W x H (mm) | 2080x70x1040 |
| PRODUCT WEIGHT | Vehicle weight in running order (with battery) | 33 kg |
| CYCLING REQUIREMENTS | Maximum Load Full Speed Maximum distance with one charge Maximum climbing angle |
120 Kg 25 Km/h 80 km 15% |
| VEHICLE PARAMETERS | Working temperature Storage Temperature |
-5-45 degree celcius -5-45 degree celcius |
| BATTERY | Rated Volt Battery capacity Charging voltage Weight |
36 V 432 Wh 42 V 2.5 kg |
| MOTOR | Rated power Rated Volt |
350 W 36 V |
| CHARGER | Input voltage Rated output Voltage Rated current Charging time |
100-240 VAC 42 V 1.5 A 7-8 hours |
| LIGHT | Headlight | LED |
| SPEEDOMETER | Type | LCD |
| SUSPENSION | Type | Spring shock absorber |
| BRAKE | Front | Mechanical disc φ180 Drum brake |
| TIRE | Size | 26×4.0 |
| FRAME | Size | Alloy |
| CERTIFICATE | Materials | EN15194 |
